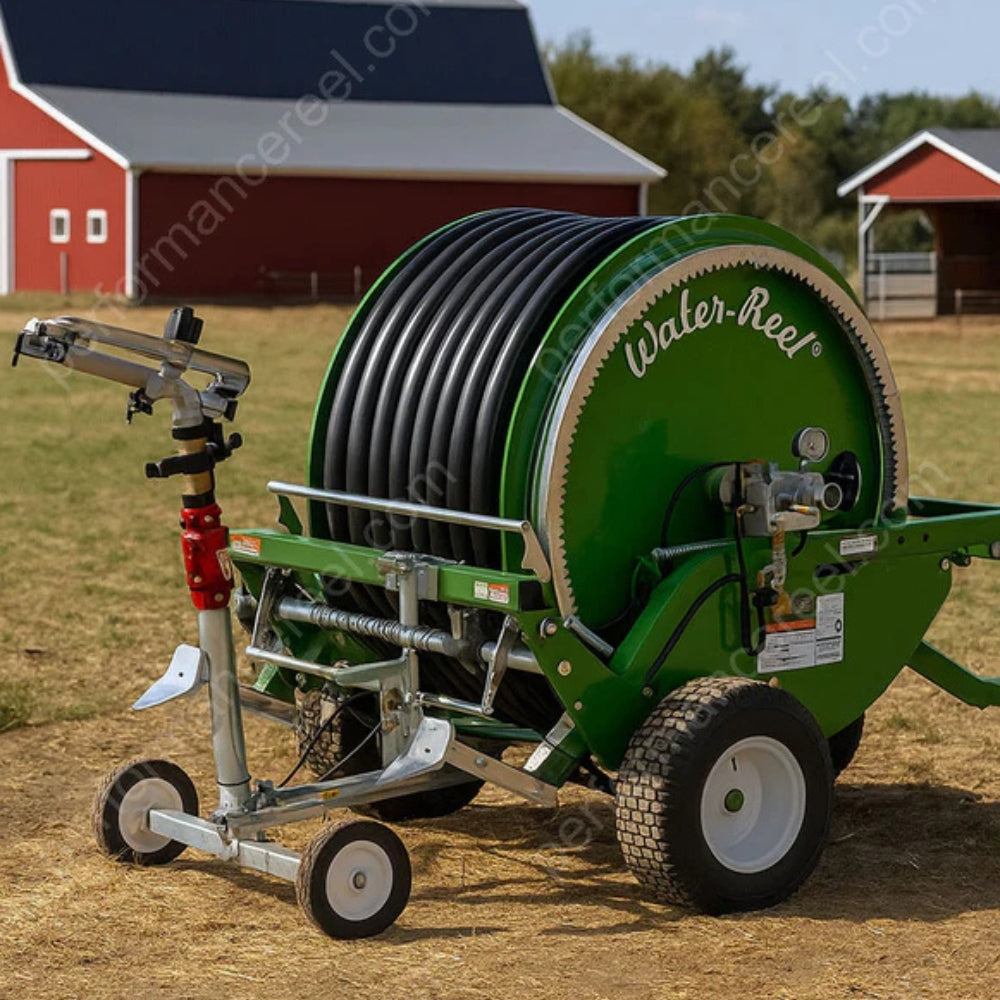

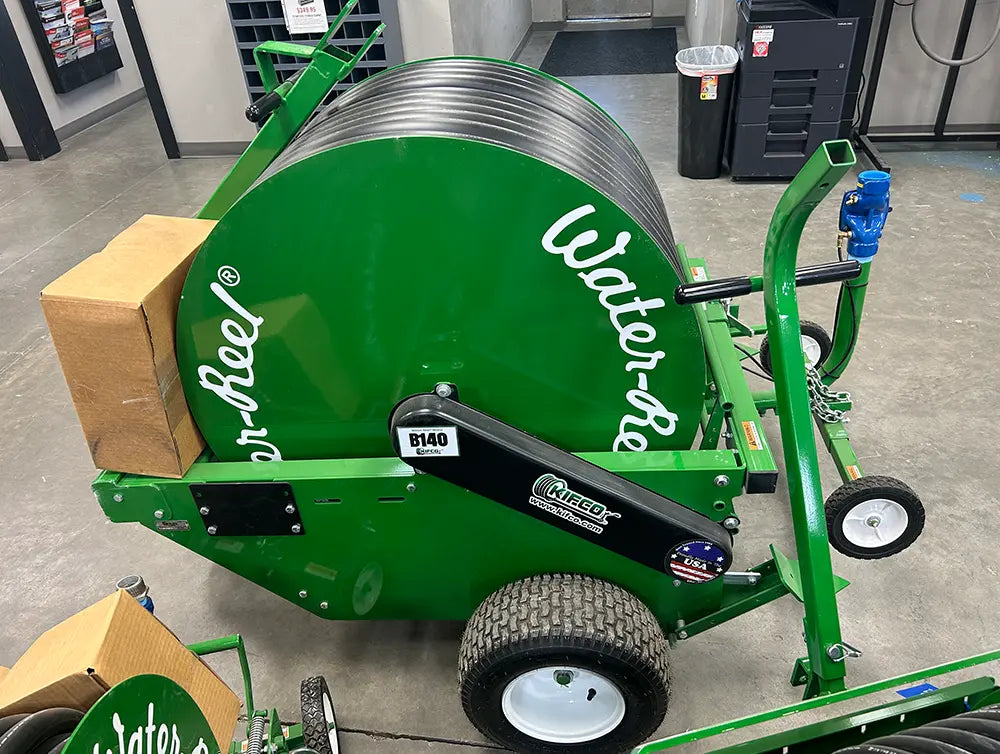

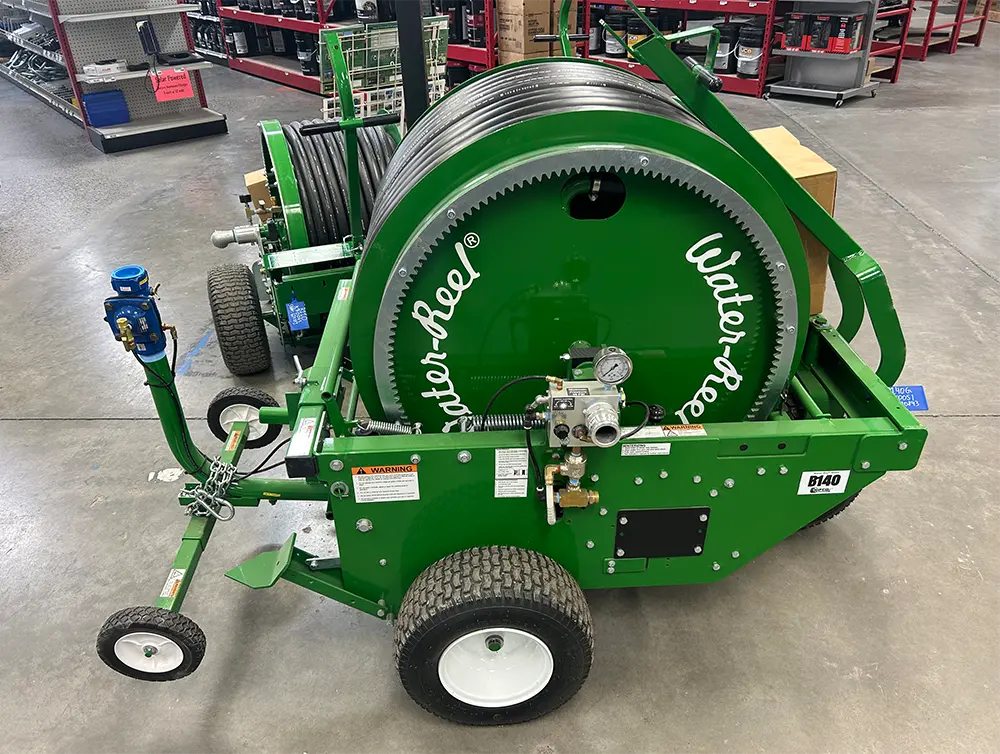

KIFCO B140 Water Reel-FREIGHT INCLUDED

The Kifco B140 Water-Reel is a heavy-duty, water-powered traveling irrigation system built for serious small acreage — covering up to 2 acres per run. Ideal for hobby farms, food plots, pastures, sports fields, and large residential properties, it runs unattended, shuts off automatically, and needs nothing but water pressure to operate. More tube, more reach, more ground covered.

Overview

• The Kifco B140 is the step-up model in the Water-Reel line — more tube, wider throw, and up to 2 acres covered per run compared to 0.8 on the B110
• Water-powered bellows drive means no electricity, no engine to maintain — just connect to your water supply and go
• Built for small acreage owners who have outgrown basic sprinklers but don't need a full pivot or permanent irrigation system
• Three large flotation tires for stability on uneven ground — tow by hand or behind a garden tractor
• Made in the USA by Kifco, with over 35,000 units sold across 40+ years of production

Perfect For

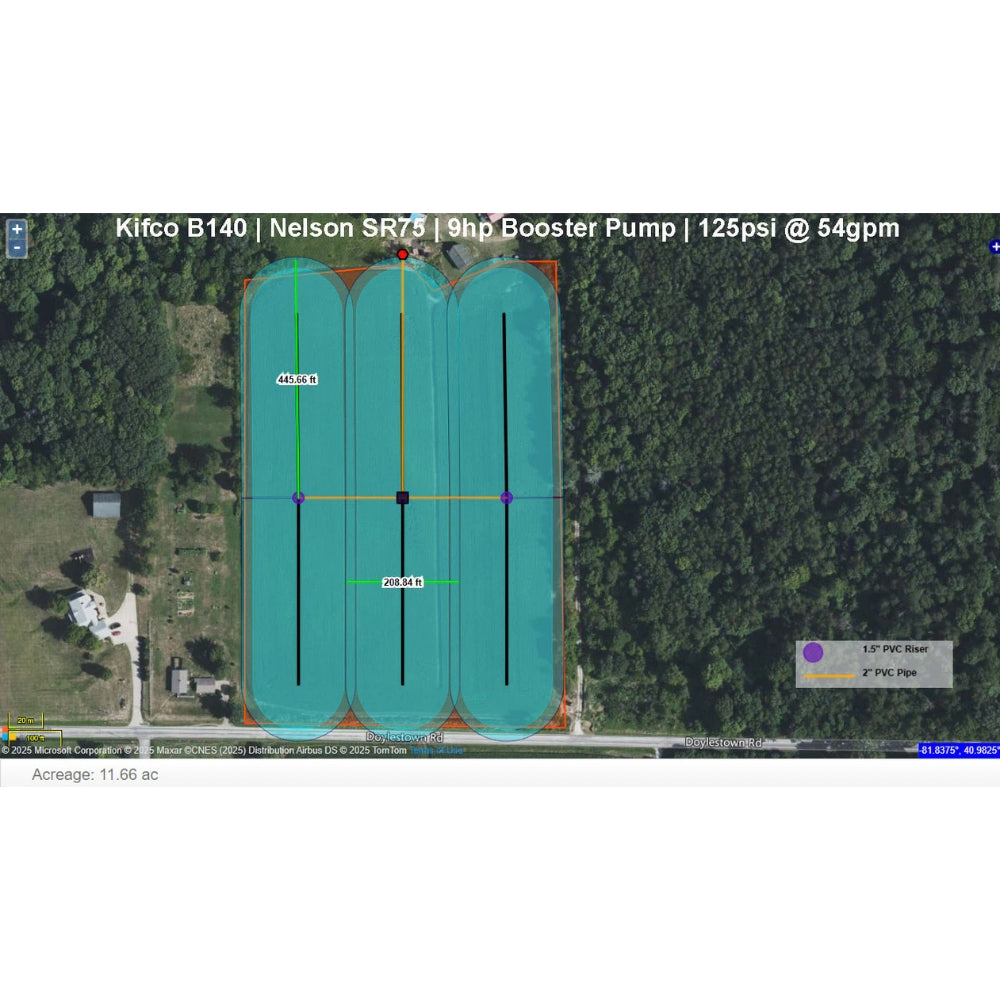

• Hobby farms & homesteads — cover up to 2 acres per pass, water your whole operation before breakfast
• Food plots & wildlife plots — get clover, brassicas, or corn established through dry summers without babysitting a sprinkler
• Pastures & hay fields — keep forage production up through drought with fewer passes needed to cover your ground

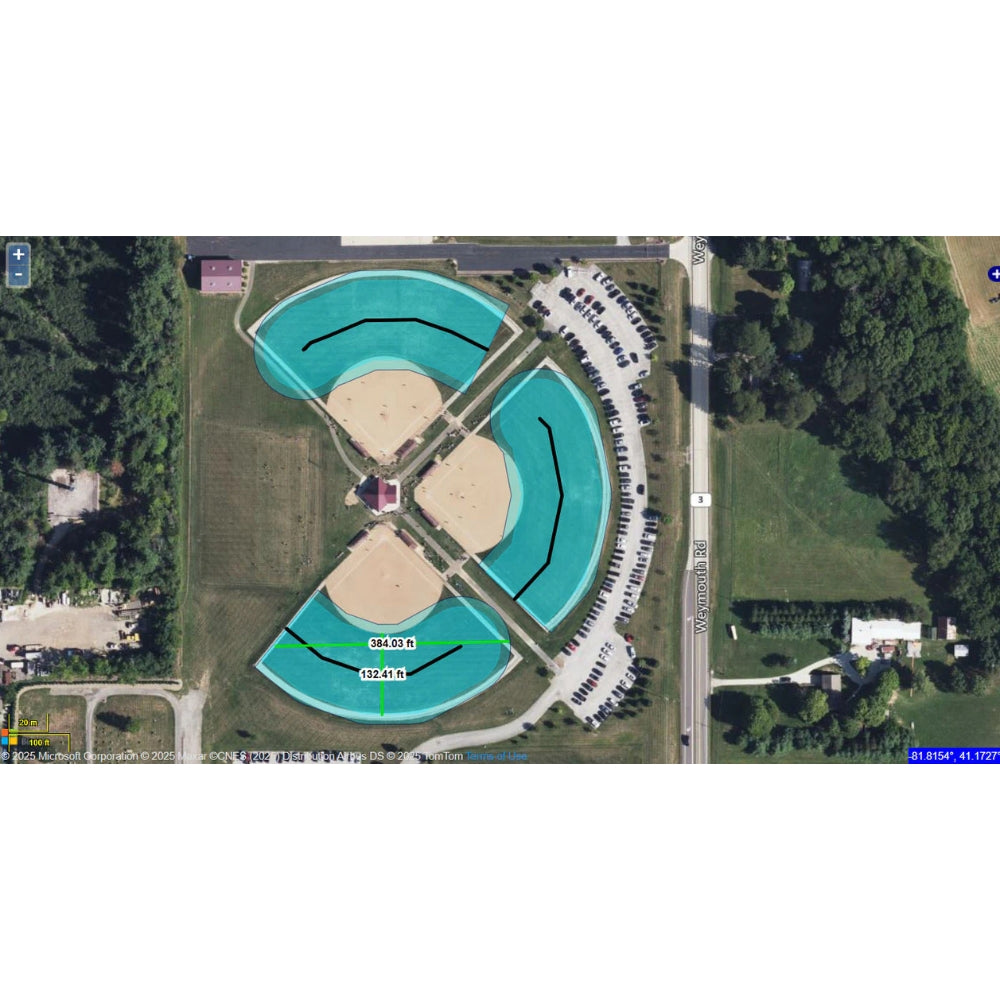

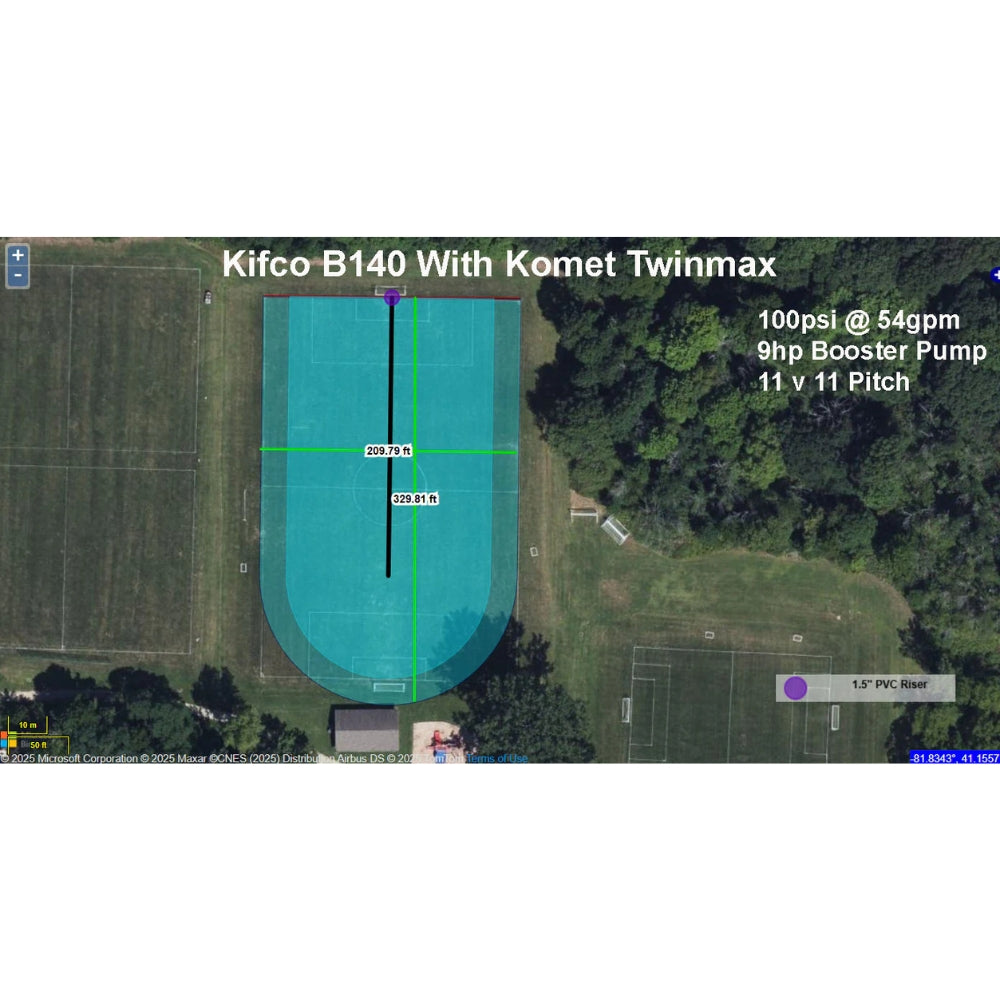

• Sports fields — wide enough to cover a football or soccer field in two passes with no permanent system needed
• Large residential lots & estates — set it, walk away, come back to green
• Nurseries & market gardens — uniform application across wide production rows with adjustable rate control

Step Up From the B110

• Tube: 1.4" ID × 350 ft (vs 1.1" × 280 ft)
• Coverage: up to 2.0 acres per run (vs 0.8 acres)
• Width: up to 198 ft irrigated (vs 118 ft)
• Flow: 18 – 80 GPM (vs 4 – 27 GPM)
• Chassis: B3 with 3 flotation tires for added stability

Why Acreage Owners Choose the B140

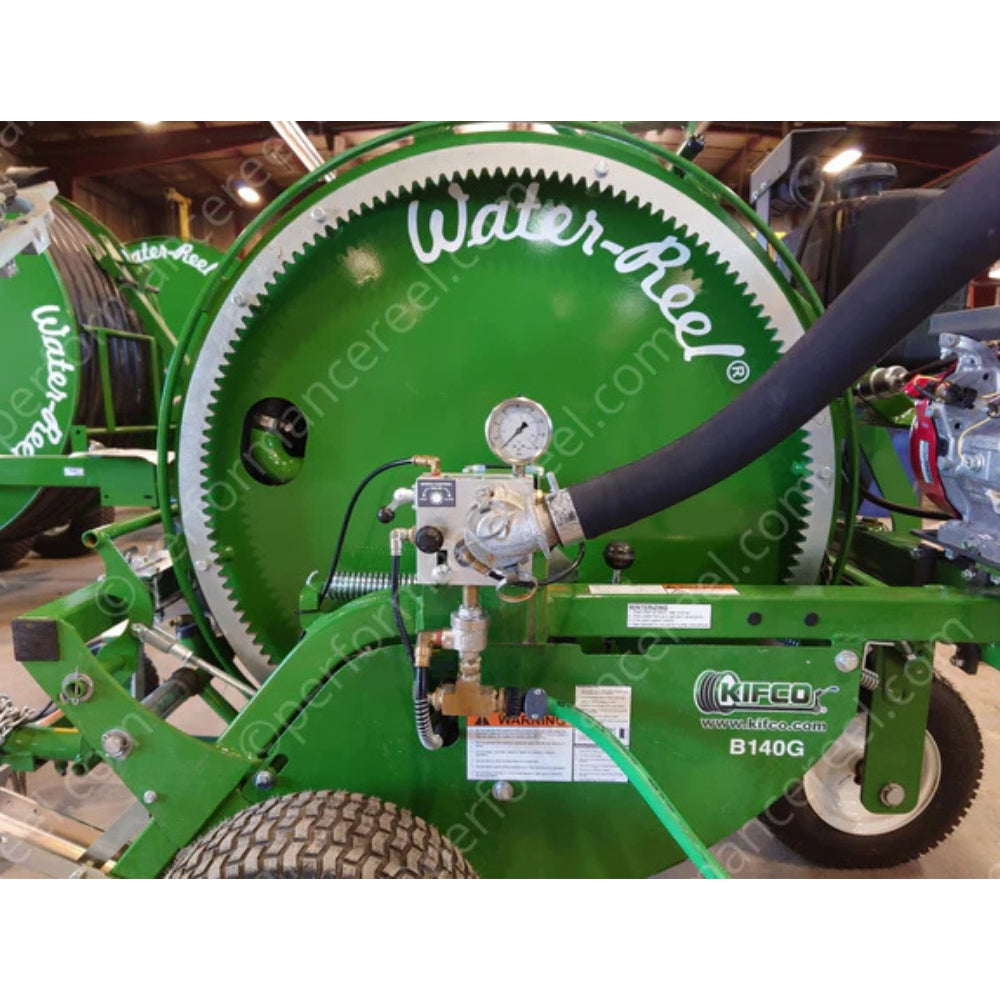

• No electricity needed — bellows drive operates from as low as 47 psi and 18 gpm, more reliable than small turbines
• Set it and walk away — automatic shutoff stops watering at end of run, no flooding, no waste
• Retraction speed dial gives precise control over application rate — match your soil type and crop needs

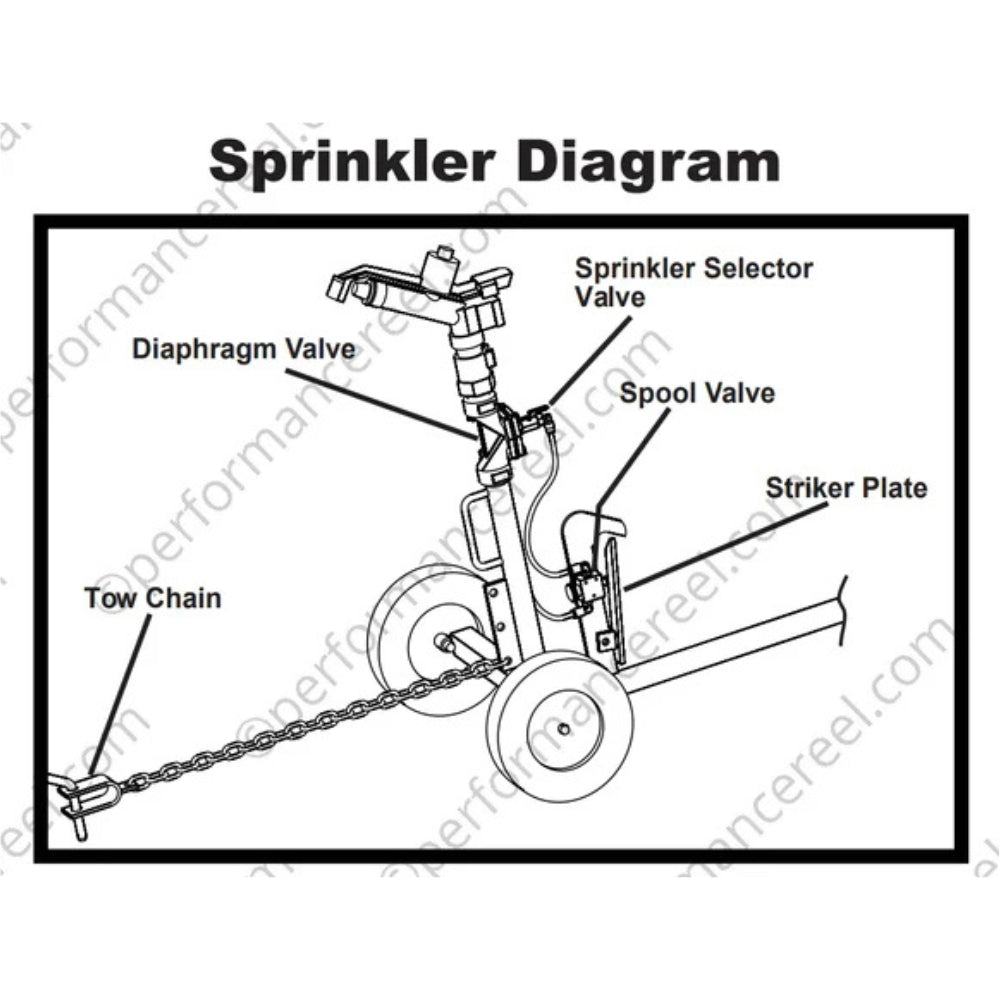

• Sprinkler selector valve lets you shut off at run's end or continue running for stationary use
• Three flotation tires add stability on rough, uneven, or soft ground — built for real farm conditions

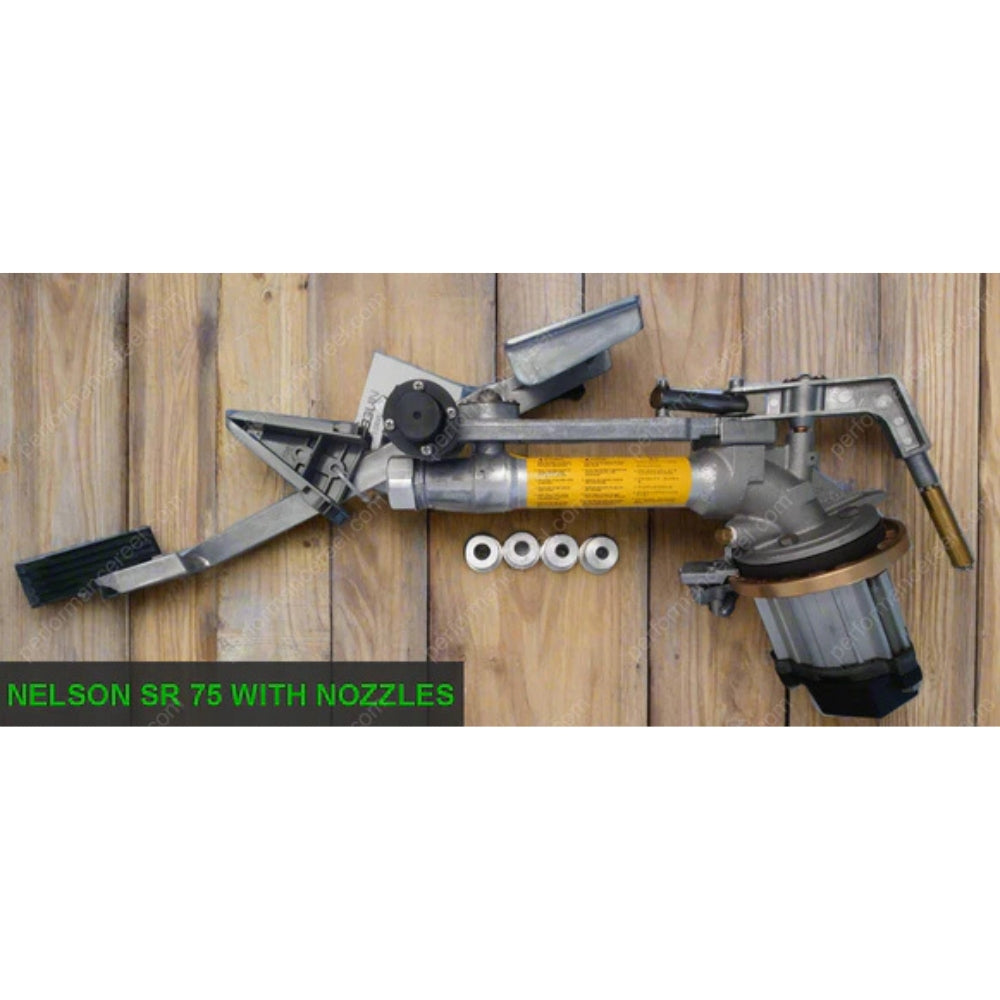

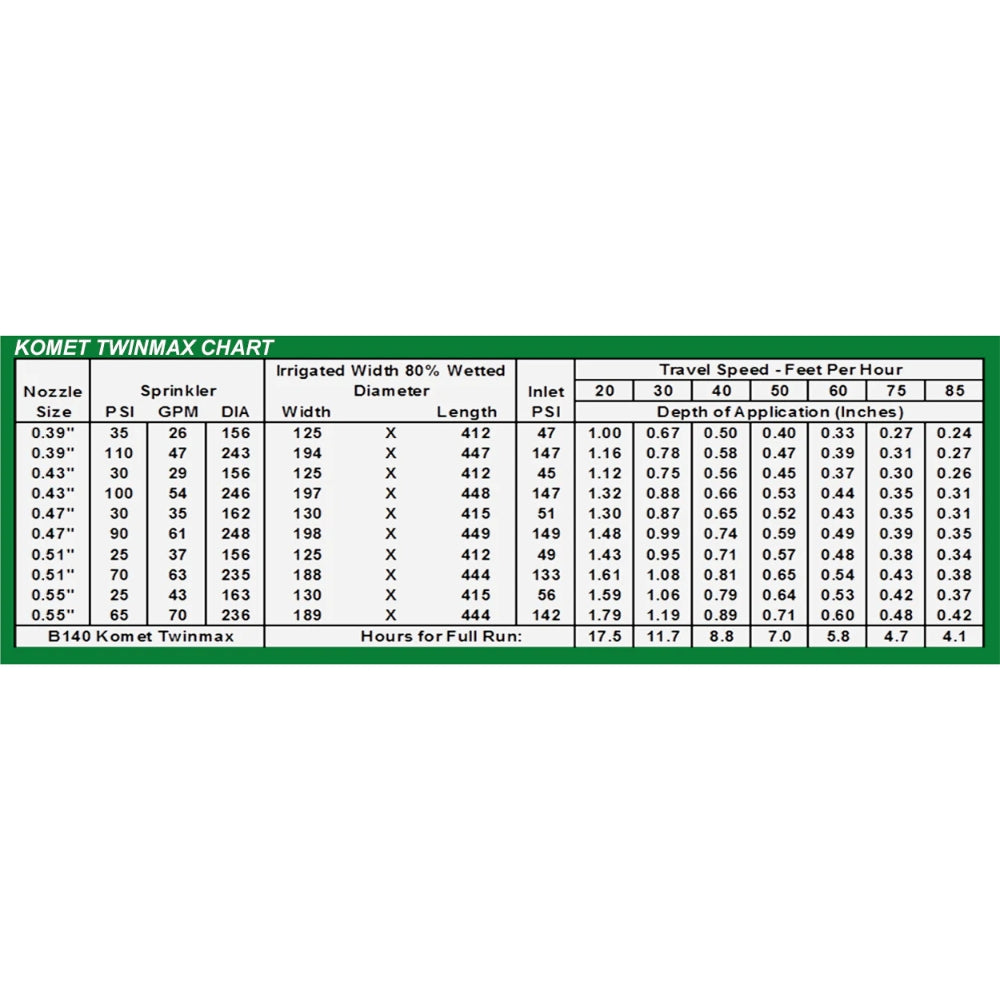

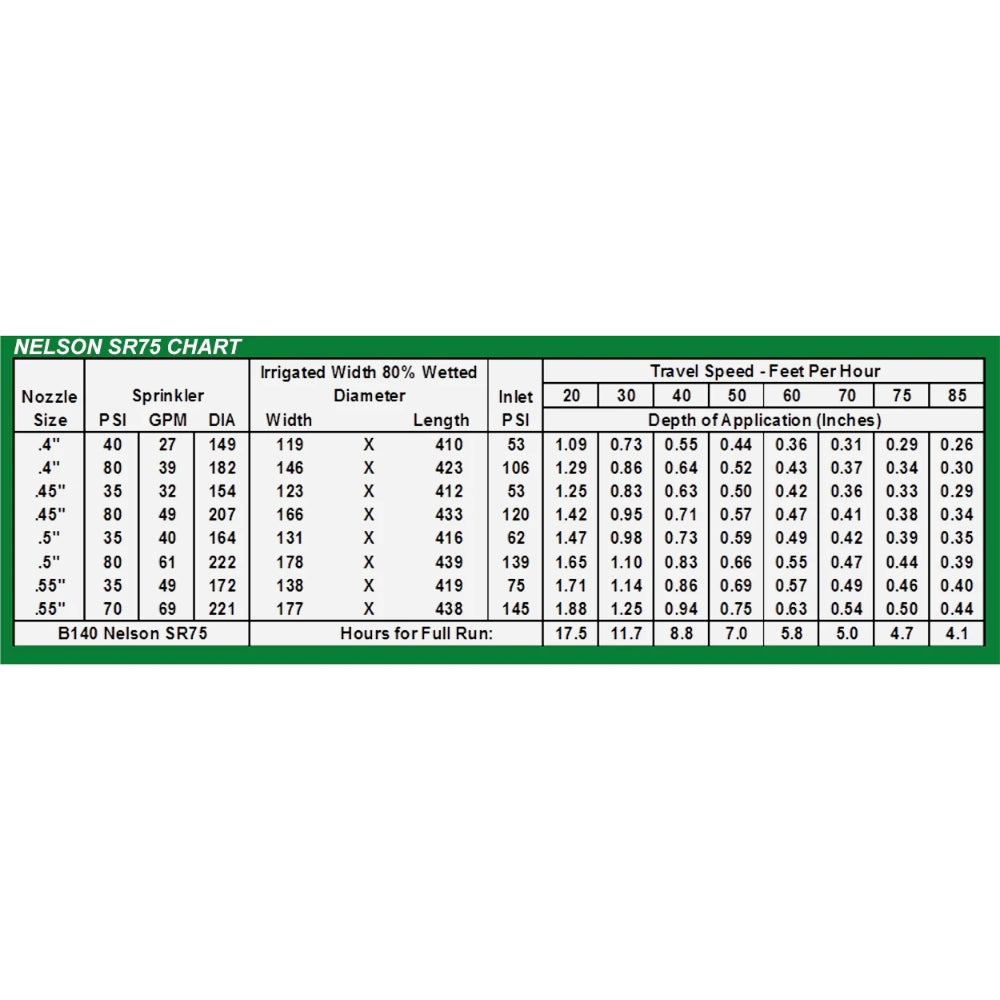

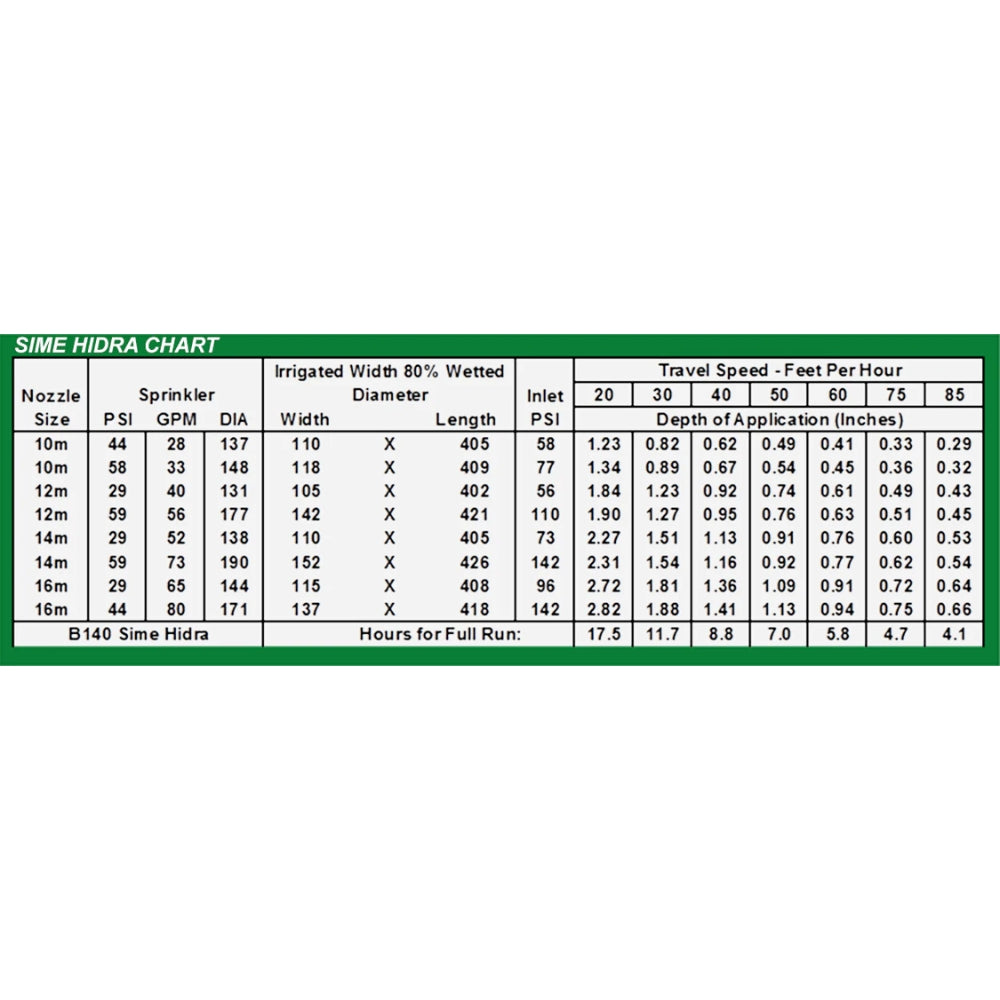

• Multiple sprinkler options: Sime K1, Sime Hidra, Nelson SR75, or Komet Twin Max — match the gun to your pressure and coverage needs

Key Specs

• Tube: 1.4" ID × 350 ft MDPE
• Coverage per run: 0.9 – 2.0 acres | Irrigated width: 100 – 198 ft
• Flow range: 18 – 80 GPM | Inlet pressure: 47 – 149 PSI
• Run time: 3.7 – 10 hours | Retraction speed: 20 – 85 ft/hr
• Weight: 530 lbs dry / 775 lbs with water

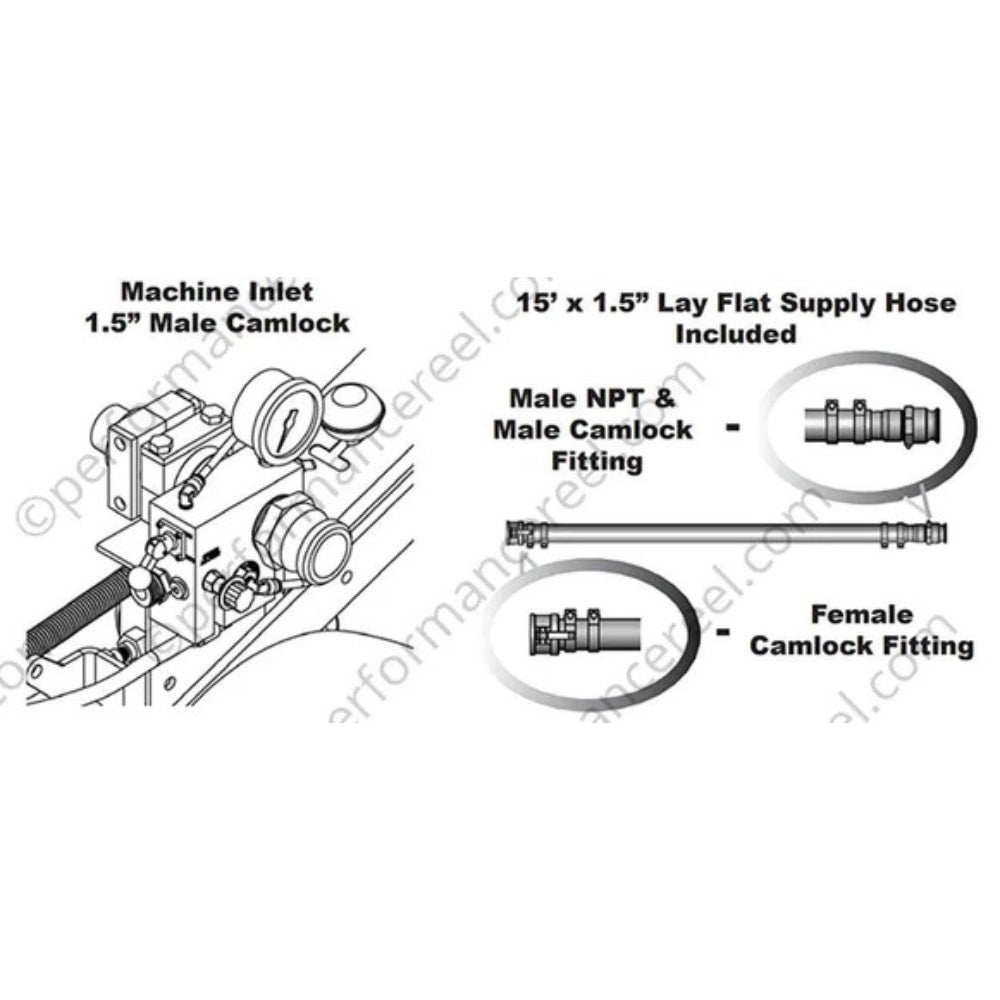

• Inlet: 1.5" Male Camlock | 15 ft supply hose included
• Warranty: 1-year machine / 5-year pro-rated tube

Optional Add-Ons

• Booster pump: 5.5 HP or 9 HP gas (for low-pressure sources like ponds or wells)
• Primary pump: 5.5 HP or 9 HP gas (for fully off-grid operation)
• Guncart tire upgrade (added stability on rough terrain)

In the Box

• Kifco B140 Water-Reel on B3 chassis
• 15 ft lay-flat supply hose with camlock fittings
• Sprinkler (model per configuration)
• Operator and parts manual

Download B140 Specifications
