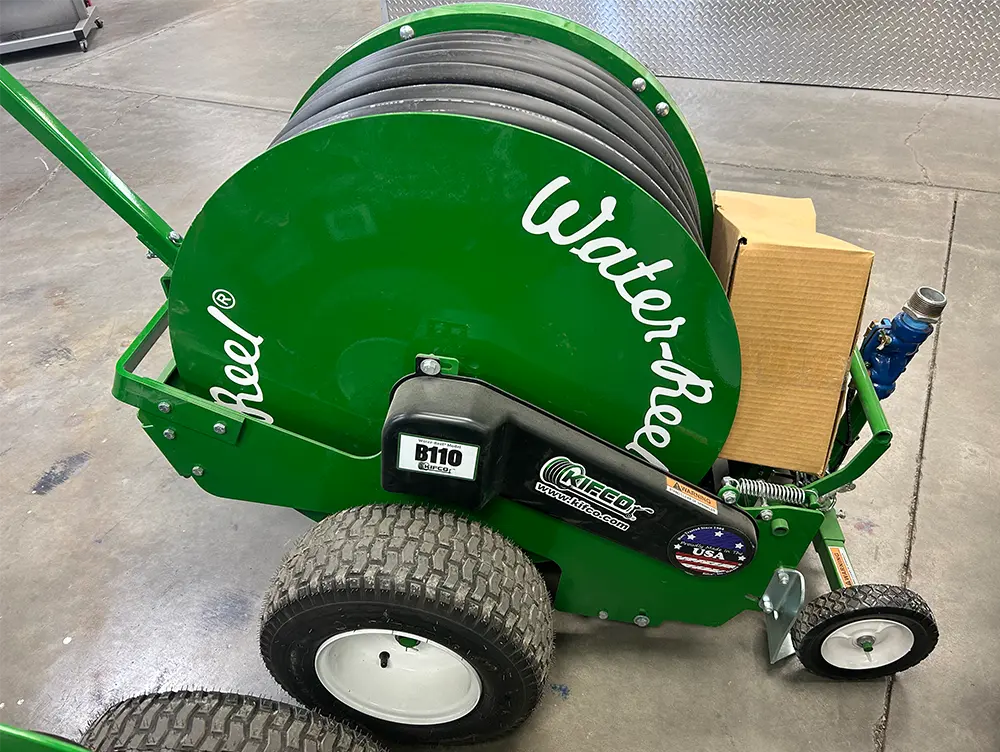

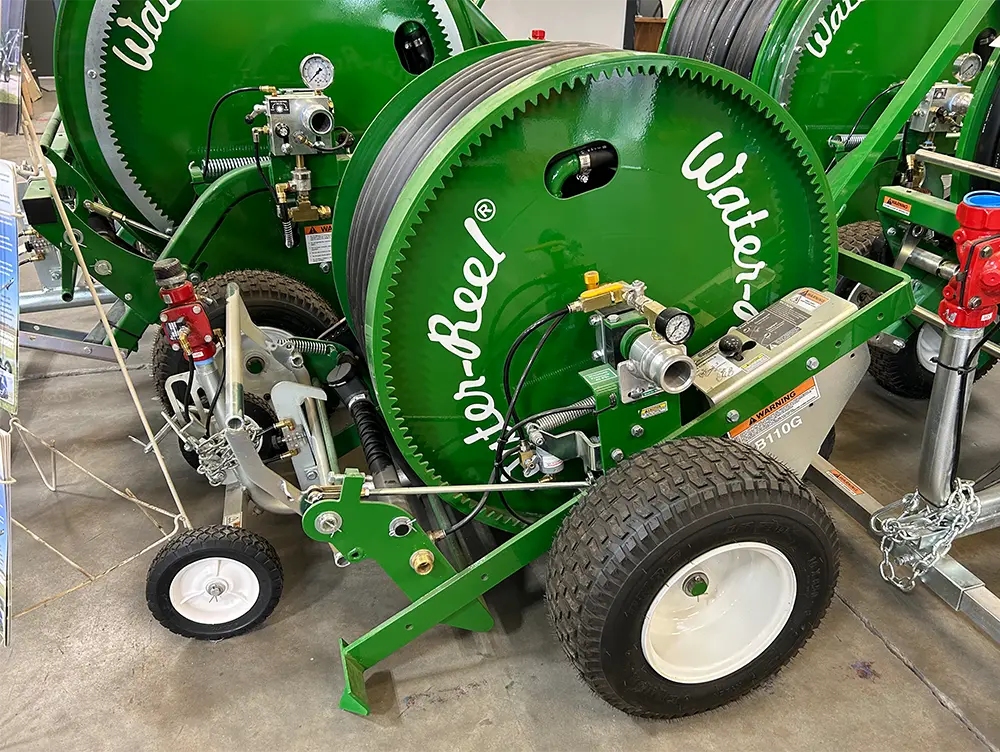

KIFCO B110 Water Reel-FREIGHT INCLUDED

The Kifco B110 Water-Reel is a portable, water-powered traveling irrigation system built for small acreage owners — perfect for pastures, paddocks, horse arenas, gardens, sports fields, and lawns up to 0.8 acres per run. Set it, walk away, and let it do the work. No electricity needed, no complex setup — just connect to your water supply and go.

Overview

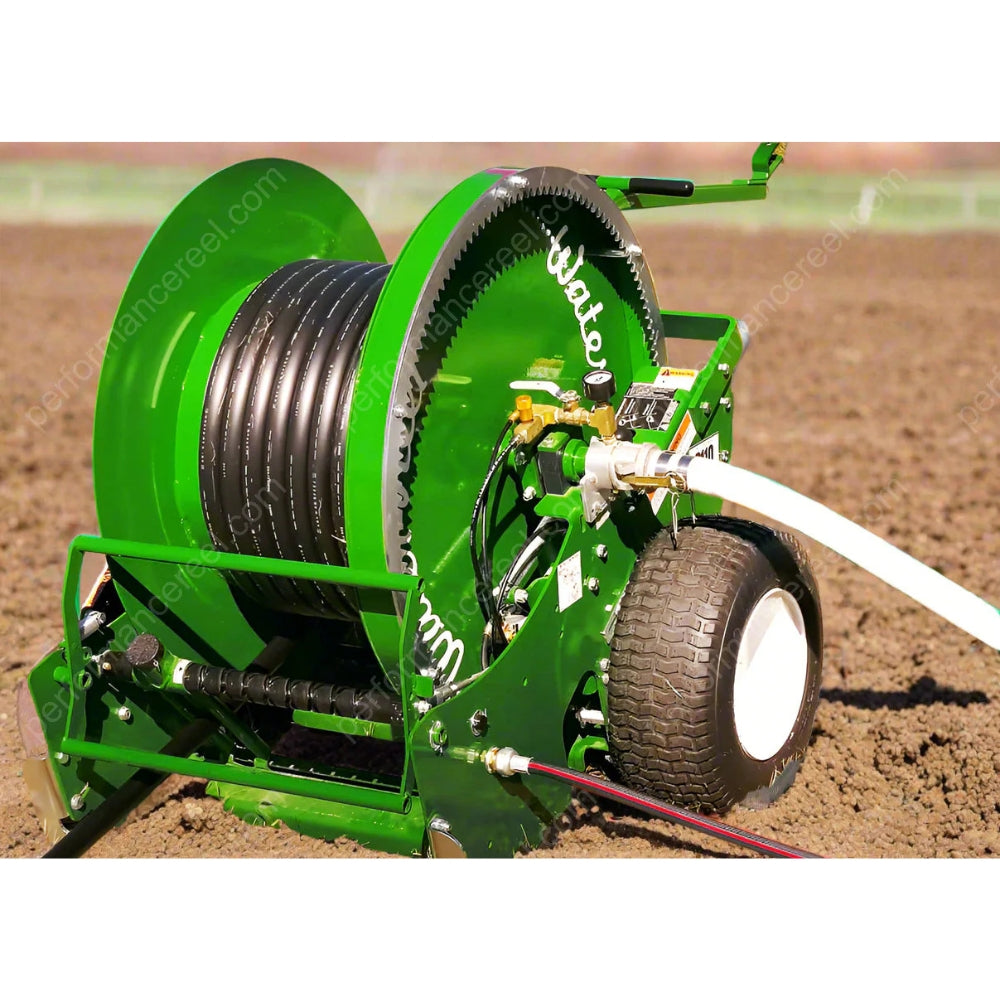

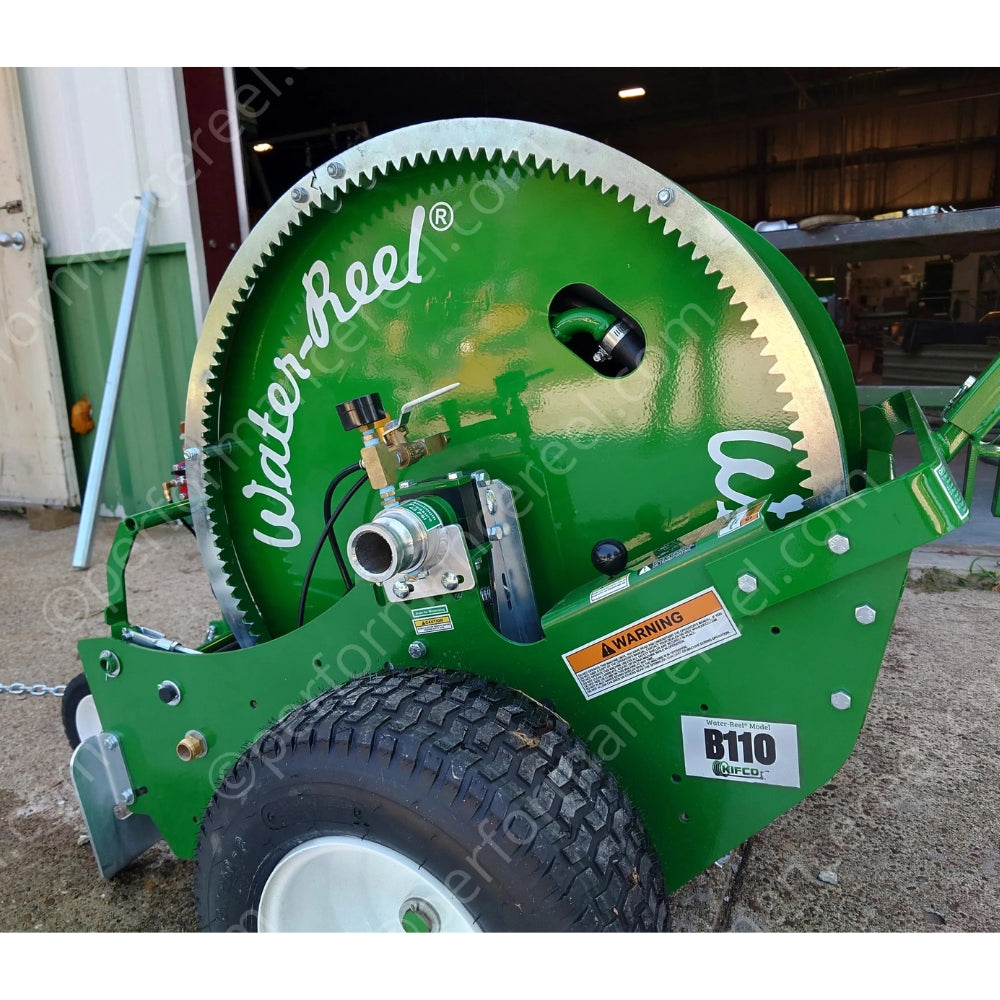

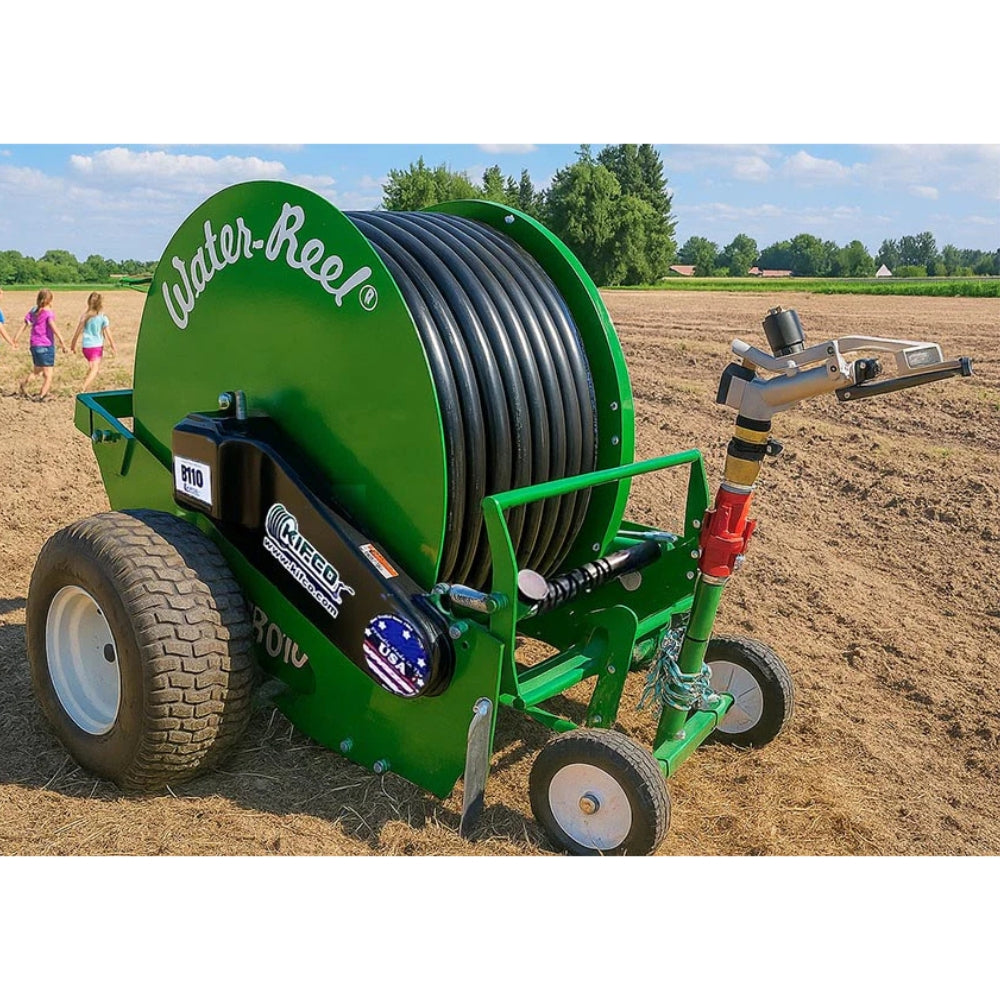

• The Kifco B110 is a self-propelled, water-powered traveling sprinkler on wheels — it pulls itself back toward you while watering a wide swath of ground, then shuts off automatically when the run is done
• Built for small acreage owners who want reliable, hands-off irrigation without a fixed system, trenching, or electrical hookup
• Covers up to 0.8 acres per run — ideal for properties from ¼ acre up to several acres with multiple passes
• Manufactured in the USA by Kifco, with over 35,000 units sold and 40+ years of proven field performance

Perfect For

• Horse arenas & paddocks — lay the dust before a ride or competition without dragging hose by hand
• Pastures & hay fields — keep forage growing through dry spells, run it overnight, wake up to a watered field
• Vegetable gardens & nurseries — uniform coverage for large garden rows or production beds

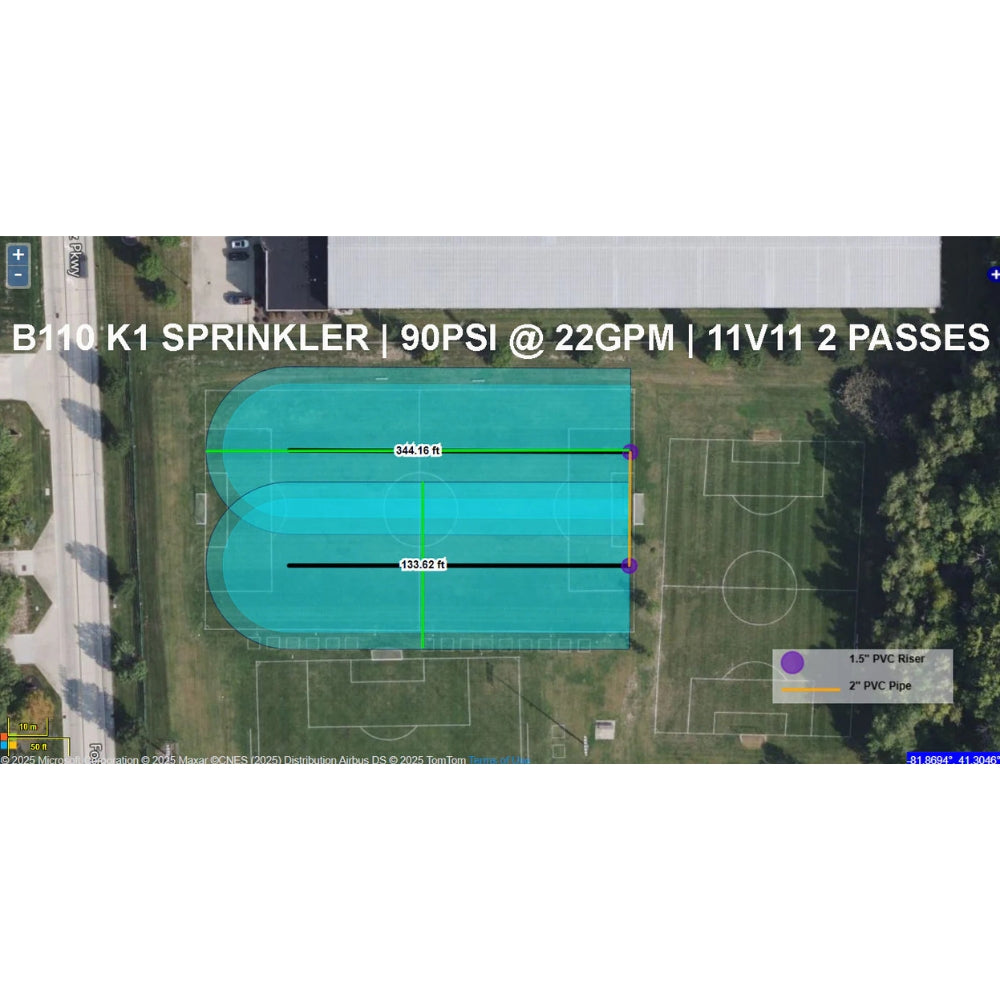

• Sports fields & lawns — two passes covers a full football or soccer field with no permanent system
• Rural residential lots — ideal for ½ to 5 acre properties where an in-ground system isn't worth the cost
• Hobby farms & homesteads — move it from the orchard to the garden to the pasture, one machine, many jobs

Why Small Acreage Owners Choose the B110

• No electricity needed — water pressure alone drives the bellows motor, works from as low as 45 psi and 4 gpm
• Set it and walk away — automatic shutoff stops watering at the end of the run
• Portable on two large flotation tires — tow by hand or behind a garden tractor
• Mechanical levelwind keeps the tube wrapping evenly with a miswrap safety to prevent jams
• Retraction speed dial lets you control exactly how much water hits the ground

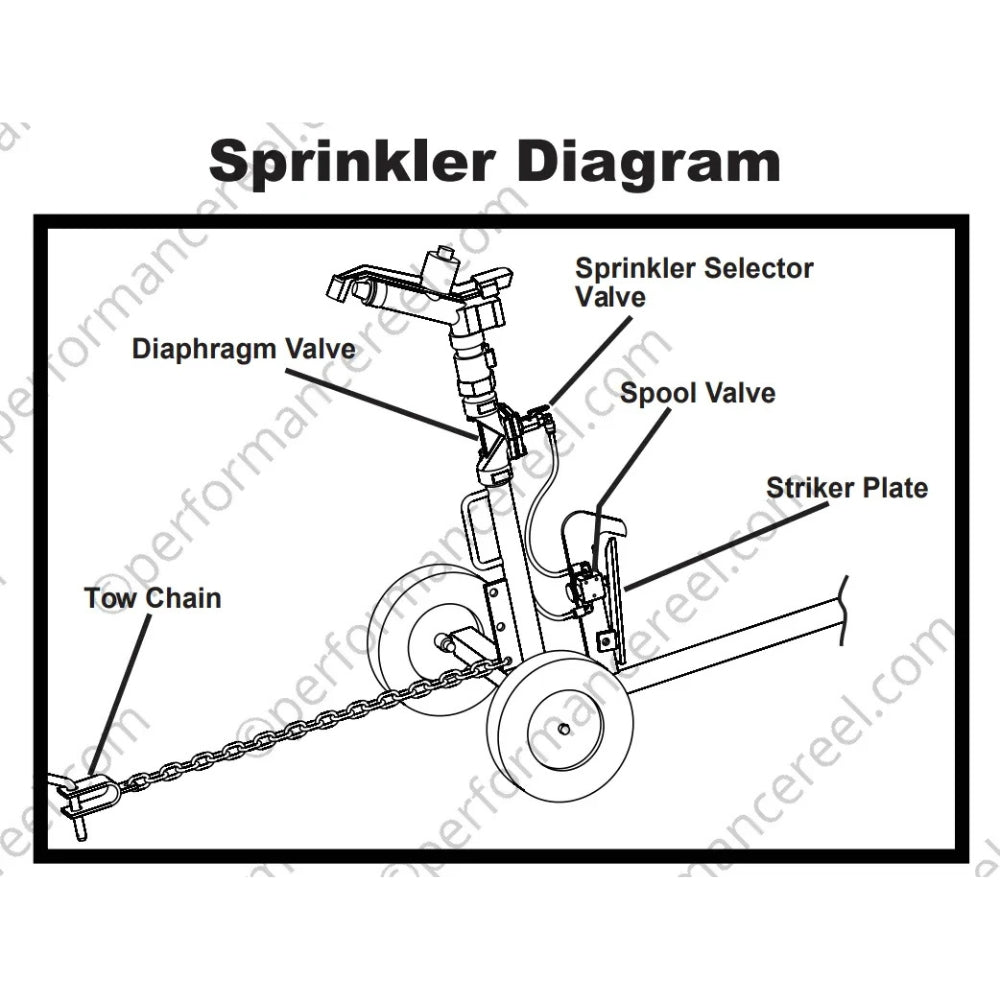

• Sprinkler selector valve lets you shut off at run's end or keep running for stationary watering
• Replaces hundreds of feet of hand-moved hose — save time, water more evenly

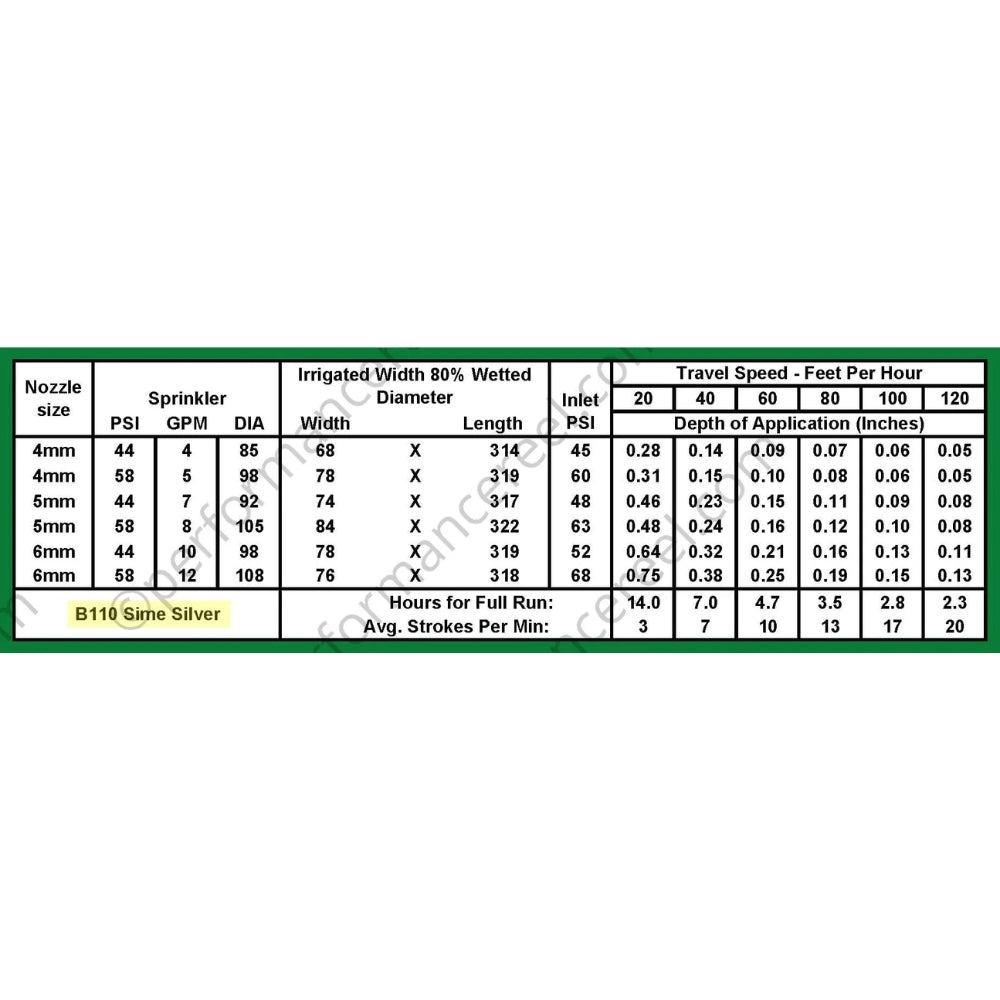

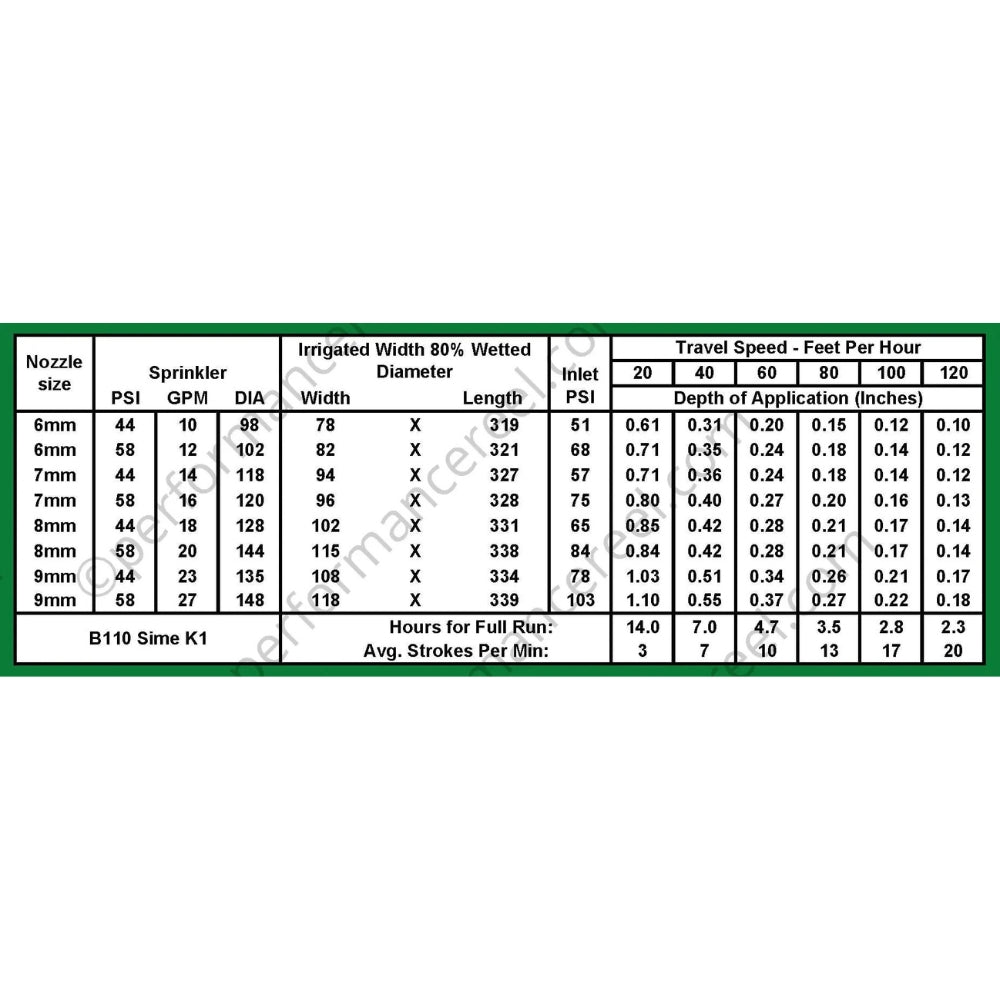

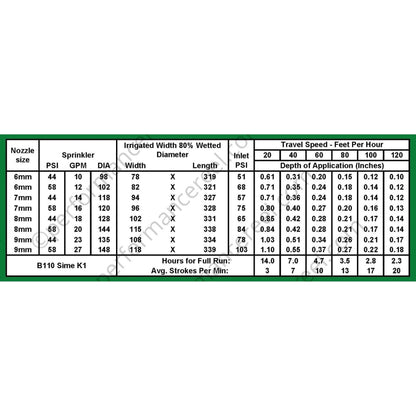

Key Specs

• Tube: 1.1" ID × 280 ft MDPE
• Coverage per run: 0.5 – 0.8 acres | Irrigated width: 68 – 118 ft
• Flow range: 4 – 27 GPM | Inlet pressure: 45 – 103 PSI
• Run time: 2.3 – 14 hours | Retraction speed: 20 – 120 ft/hr
• Weight: 276 lbs dry / 345 lbs with water

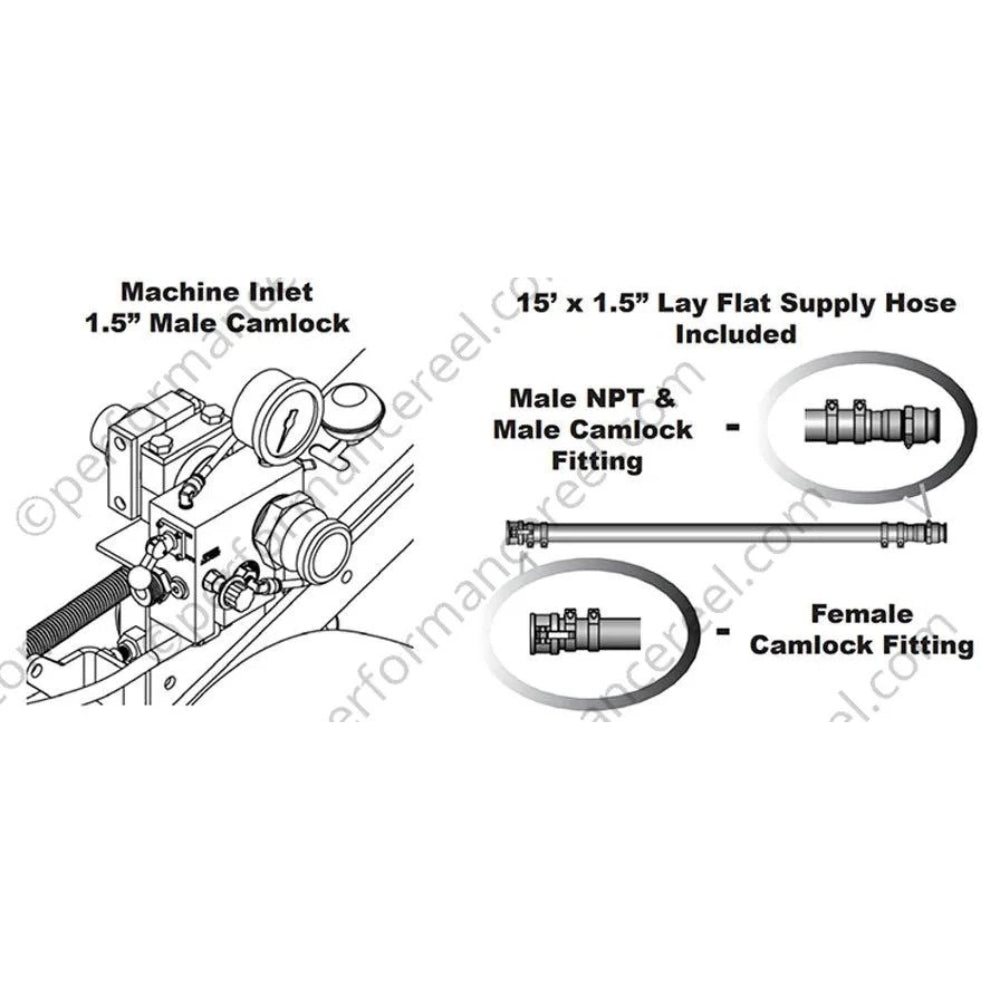

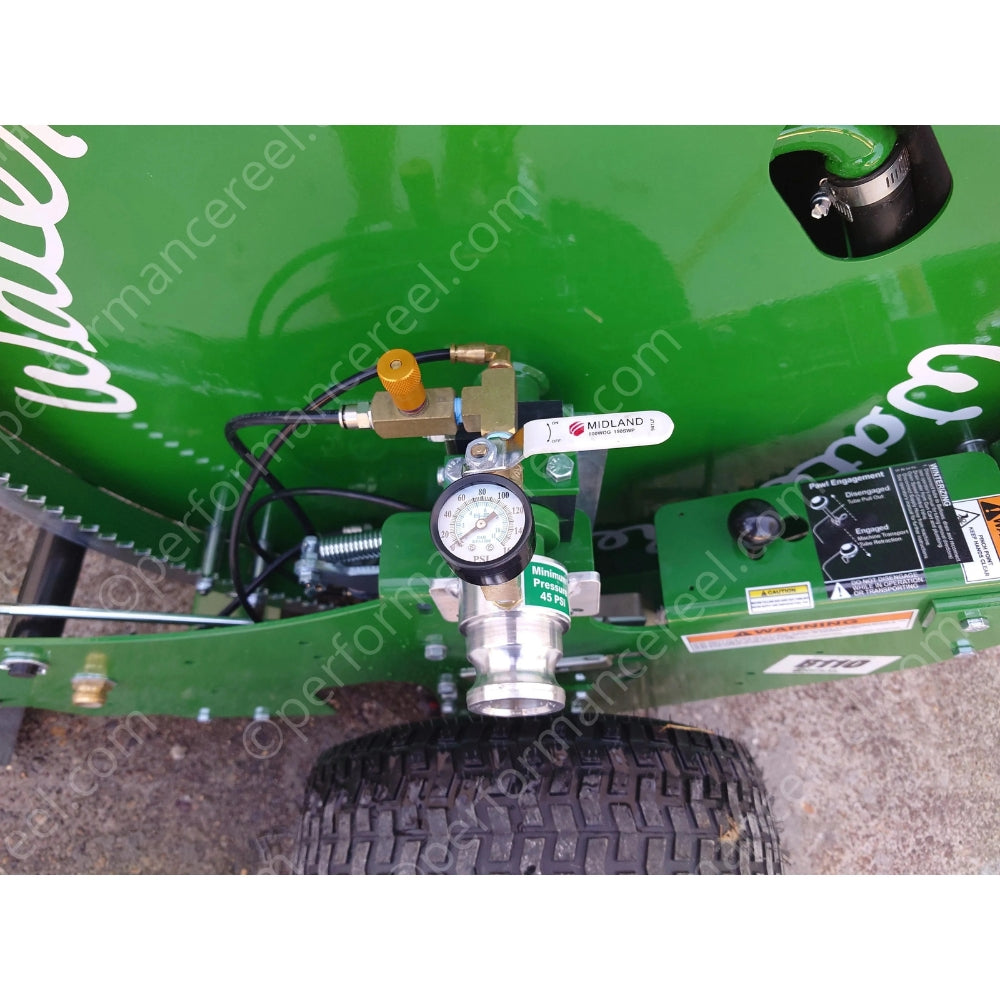

• Inlet: 1.5" Male Camlock | 15 ft supply hose included
• Warranty: 1-year machine / 5-year pro-rated tube

Optional Add-Ons

• 1 HP electric booster pump (for low-pressure sources like ponds or shallow wells)
• Primary pump: 5.5 HP gas, 9 HP gas, or 9 HP diesel (for off-grid operation)

In the Box

• Kifco B110 Water-Reel on B2 chassis
• 15 ft lay-flat supply hose with camlock fittings

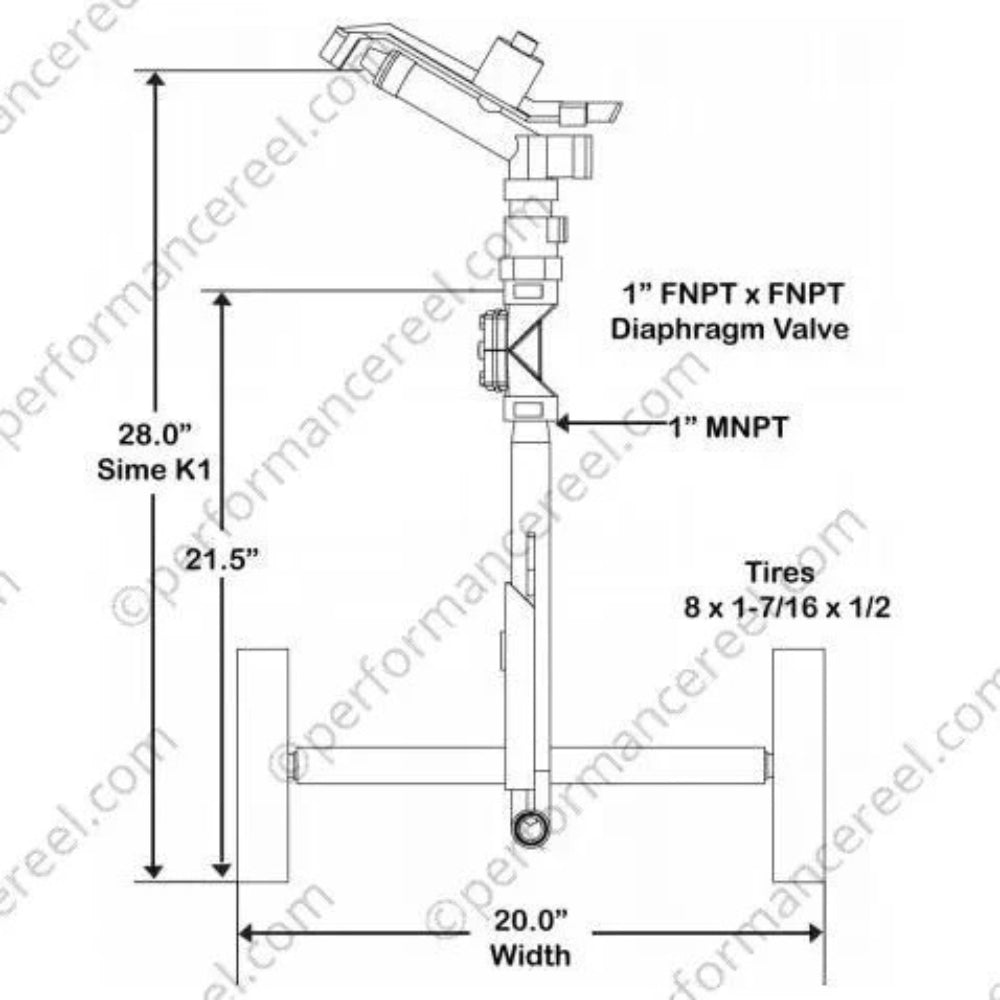

• Sime sprinkler (model per configuration)
• Operator and parts manual

Download B110 Specifications
